Best fix for stripped foot strap inserts (screw type)??


Post new topic   Reply to topic    Northwest Kiteboarding -> Gorge / Portland / Oregon Coast
previous topic :: next topic
Author Message
underwood

Since 26 May 2018
12 Posts





PostSun Sep 16, 18 6:21 am    Best fix for stripped foot strap inserts (screw type)?? Reply with quote

The foot-strap inserts in my Slingshot board have stripped and no longer hold.

The inserts are some type of nylon or plastic embedded into the board which accepts a coarse thread wood screw.

Any suggestions on how to repair so that screw will hold?

Thanks

View user's profile Send private message
knotwindy

Since 25 Sep 2011
382 Posts

Obsessed



PostSun Sep 16, 18 7:25 am     Reply with quote

One size bigger screw?

View user's profile Send private message
underwood

Since 26 May 2018
12 Posts





PostSun Sep 16, 18 8:29 am     Reply with quote

[quote]One size bigger screw?[/quote]

Did that and worked for a while. Not knowing how big the embedded insert is I am worried about going any larger.

View user's profile Send private message
chavannes

Since 14 Oct 2015
8 Posts

Kook



PostSun Sep 16, 18 8:41 am     Reply with quote

You can usually only tap it another size up or so.

Depending on how much you love the board, you could drill through the bottom and put a "T" bolt stlye in. Epoxy>sand> done.

I'm sure you have already considered just using a narrow or wide stance as well.



View user's profile Send private message
Windian

Since 28 Apr 2008
755 Posts
Newport, OR
Opinionated



PostSun Sep 16, 18 9:16 am     Reply with quote

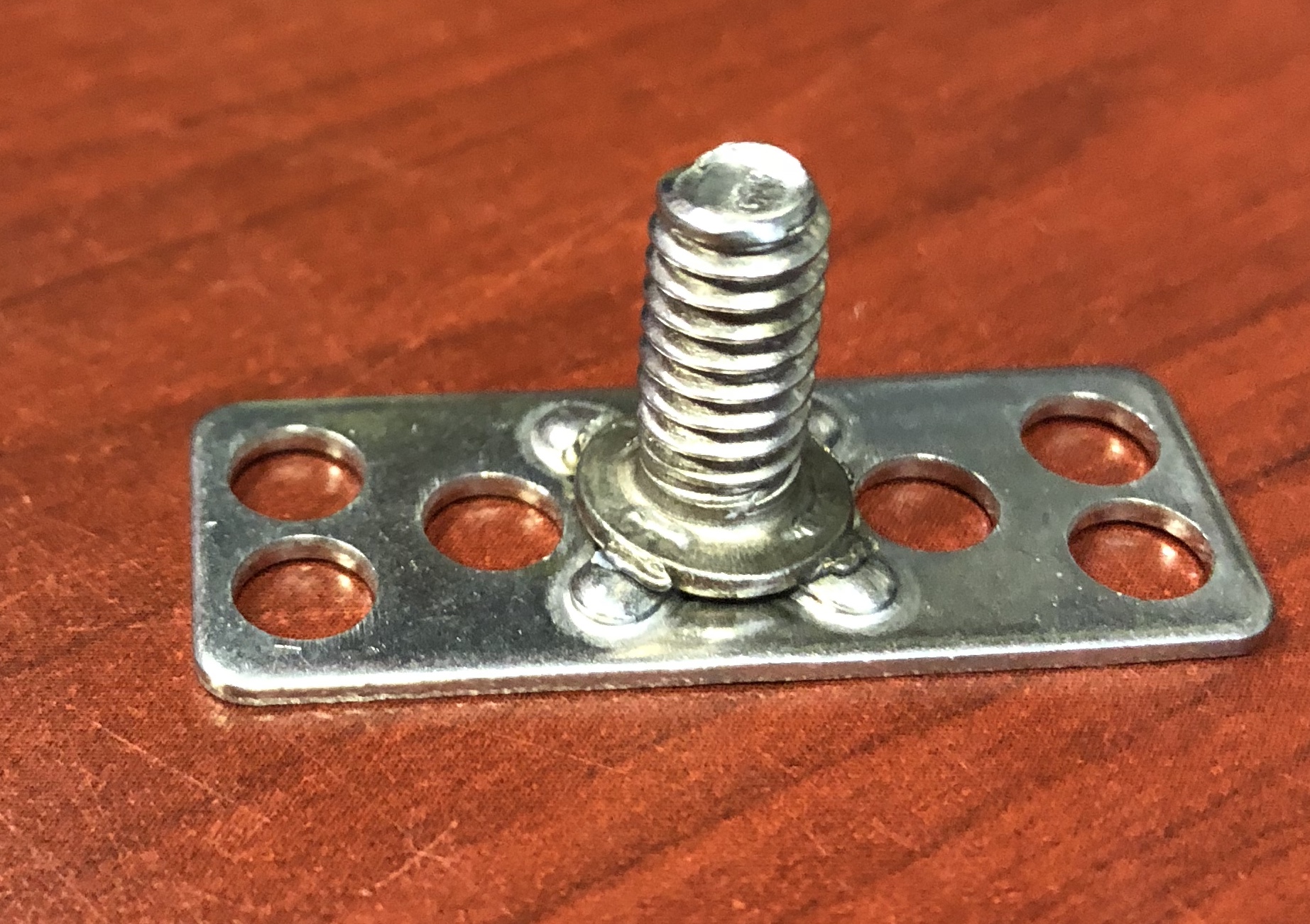

I used a set of these on a surfboard where the back foot inserts were not placed far enough to the back of the board for my liking. Been several years since sticking them on and they are still holding strong.

https://northshoreinc.com/store/pc/viewPrd.asp?idproduct=236&idcategory=117

It is an easy fix and allows you to place your foot straps where ever you want them.

View user's profile Send private message Send e-mail
apctjb

Since 19 Aug 2007
267 Posts

Obsessed



PostSun Sep 16, 18 9:47 am     Reply with quote

Thanks for the suggestions!!

I was hoping for a fix that does not require removing the deck pad (continuous pad covers the insert area) or worse.

Anyone have any luck with filling the holes with epoxy, p-tex, ??? and then re-drilling?

View user's profile Send private message
user124

Since 02 Aug 2012
263 Posts
Portland
Obsessed



PostSun Sep 16, 18 10:38 am     Reply with quote

I used heli-coils recently on a stripped surfboard insert. You drill out the hole with the suggested size drill bit then tap the hole and use an insert device they provide to insert the heli-coil. Pretty nice solution and did not require removing my deck pad.

https://www.amazon.com/Helicoil-5546-6-Metric-Coarse-Thread/dp/B0002KKPXK/ref=sr_1_6?ie=UTF8&qid=1537122933&sr=8-6&keywords=heli+coil

I used this size for the M6 screws Slingshot uses. The threads on the slighshot screws are more coarse but still seemed to hold fine. I don't know how well it will hold up to repeated removal and replacement of pads - might be worth finding a better matching screw in that case.

View user's profile Send private message
apctjb

Since 19 Aug 2007
267 Posts

Obsessed



PostSun Sep 16, 18 3:51 pm     Reply with quote

[quote/]I used heli-coils recently on a stripped surfboard insert. You drill out the hole with the suggested size drill bit then tap the hole and use an insert device they provide to insert the heli-coil. Pretty nice solution and did not require removing my deck pad[/quote]

Great to hear that heli coil works with the plastic insert material an Slingshot screw.

View user's profile Send private message
stringy

Since 23 Jun 2006
1599 Posts
vancouver
XTreme Poster



PostThu Sep 27, 18 6:53 am     Reply with quote

did you get this resolved? I've got a couple of suggestions that could help but not sure the board or how bad it is. send a pic if you still need a solution.
stringy

_________________
www.jimstringfellow.com

View user's profile Send private message
