Cloud CCS Bar Update


Post new topic   Reply to topic    Northwest Kiteboarding -> Gorge / Portland / Oregon Coast
previous topic :: next topic
Author Message
synergy12

Since 31 May 2007
126 Posts

Stoked



PostMon May 27, 19 1:15 pm    Cloud CCS Bar Update Reply with quote

This mod will allow the rider to fine tune how far away the bar is away from them when the bar is released.

The new CCS Bar has the Stainless Ring attached to the fixed center line with a simple overhand knot allowing you to adjust the distance the bar flags out when released.

The mod for the old bar only requires is a pigtail to lengthen the fixed line taken up by the knot.

For the pigtail, I cut off the end of an old set of sheeting lines that were very worn where they went through the bars, but the line attachment end was in near perfect condition. This was then attached to the end of the fixed sheeting line and a then an overhand knot tied to attach the center line to.

Safety release in not affected and works perfectly!

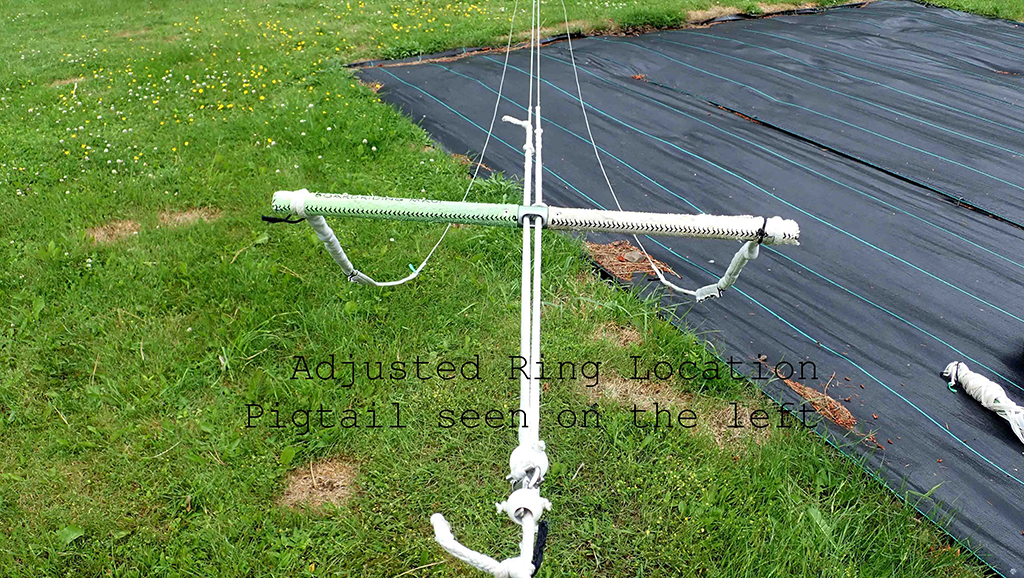

Adjust Ring Location / Pigtail seen on left
 Adjust Ring Location / Pigtail seen on left  P5270034 VsmT.jpg

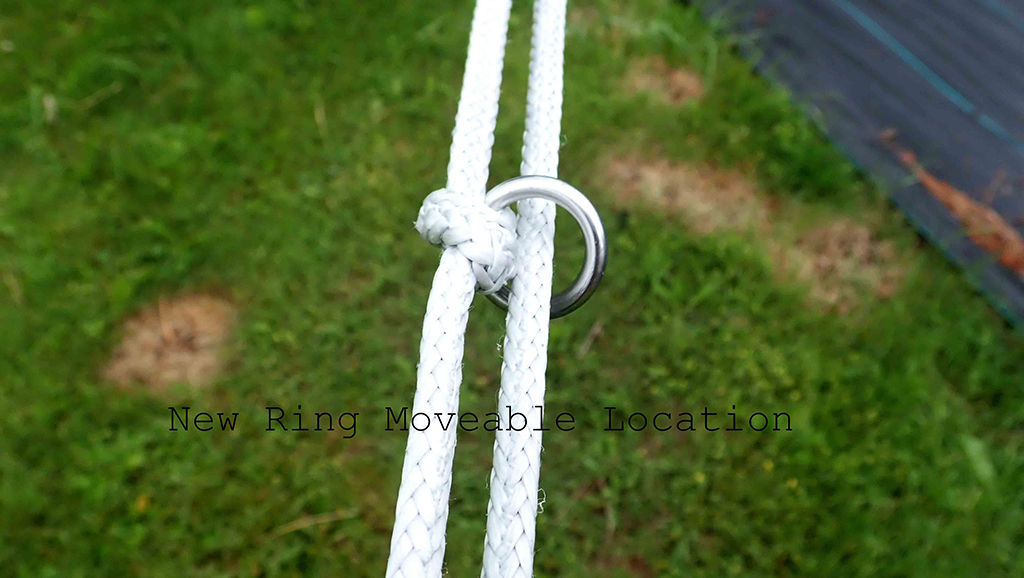

New Ring Moveable Location
 New Ring Moveable Location  P5270035 VsmT.jpg

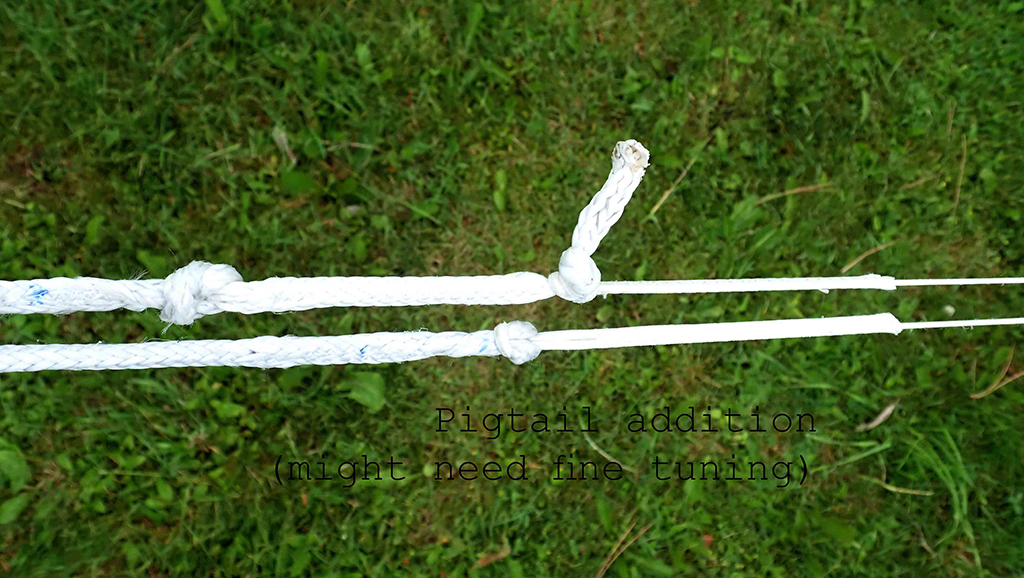

Pigtail Addition (might need fine tuning)
 Pigtail Addition (might need fine tuning)  P5270037 VsmT.jpg

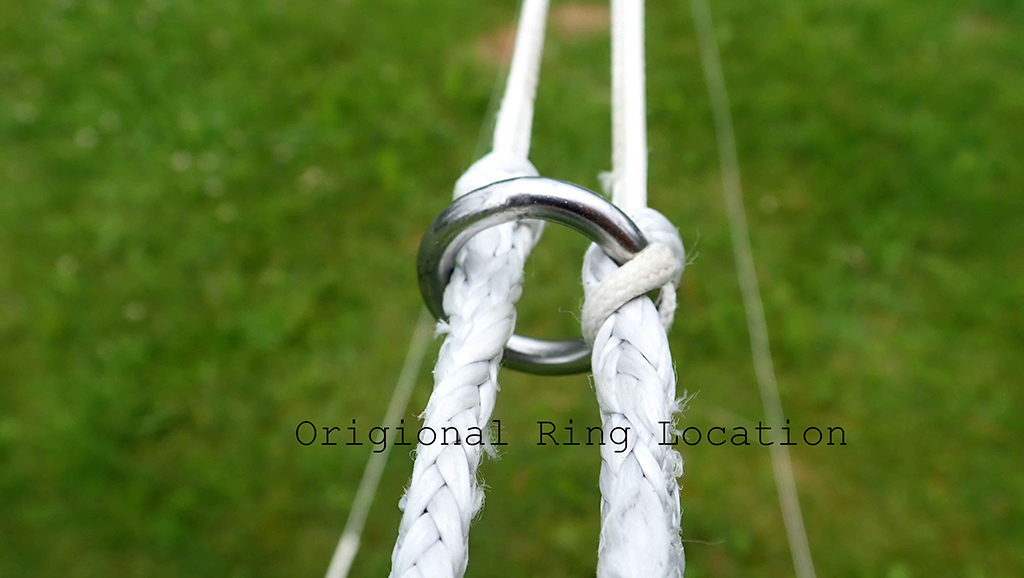

   P5270031 VsmT.jpg

View user's profile Send private message Send e-mail
synergy12

Since 31 May 2007
126 Posts

Stoked



PostTue May 28, 19 6:36 am    Cloud CCS Bar Update Reply with quote

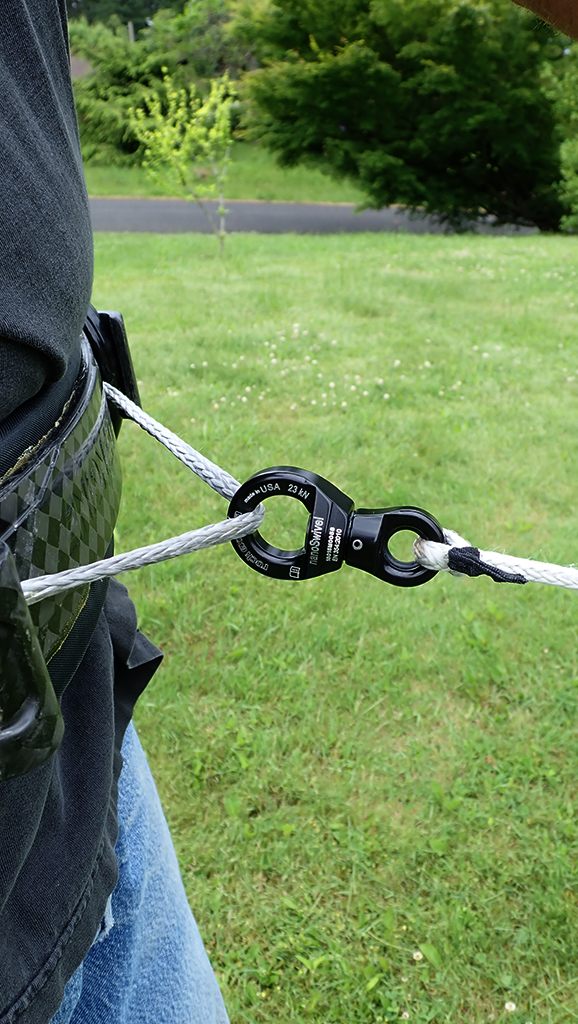

In case any of you Cloud CCS users have been looking for a truly excellent center line swivel, this a great option.

https://www.rockexotica.com/nanoswivel/


   P5270030 Vsm.jpg

View user's profile Send private message Send e-mail
wylieflyote

Since 30 Jun 2006
1408 Posts
Puget Sound & Wa. Coast
XTreme Poster



PostTue May 28, 19 9:03 am     Reply with quote

Nice, I've not tried any swivel spreader connection. How does this help? Are you reaching down and untwisting the center lines instead of kitelooops to straighten this? I use a 12mm Barton Marine Load Eye:

https://www.amazon.com/gp/product/B00EV55DCK/ref=ppx_yo_dt_b_asin_title_o04_s00?ie=UTF8&psc=1


_________________
CGKA Member
-------
Kip Wylie

View user's profile Send private message
synergy12

Since 31 May 2007
126 Posts

Stoked



PostTue May 28, 19 1:22 pm    Cloud CCS Bar Update Reply with quote

This swivel has a very high quality sealed bearing and even holds up to salt water. With one of these you will never have to untwist center lines from looping, it is awesome.

I started out with the low friction rings on the slider bar rope and still have one, though not sure what I would ever do with it now. This Nano Swivel is the only swivel I have had ever had that actually worked, so cool.

View user's profile Send private message Send e-mail
